WS-6990

High level of integration, high-performance, Full-featured,integrated design

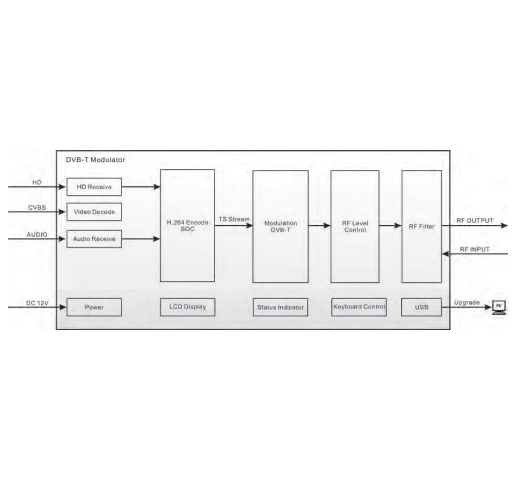

Single input modulator that converts analogue A/V source to a ISDB-T/DVB-C/DVB-T channel
Standard COFDM modulation and H.264 encoding
Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
Bandwidth: 6/7/8MHz
Frequency range: 100~860MHz
Continuously adjustable RF signal output level range 70dBuV from 100dBuV,step 1dBuV
2.4-inch color LCD display
Carriers 2K and 8K
User friendly setup and control
Compact and wall mountable
